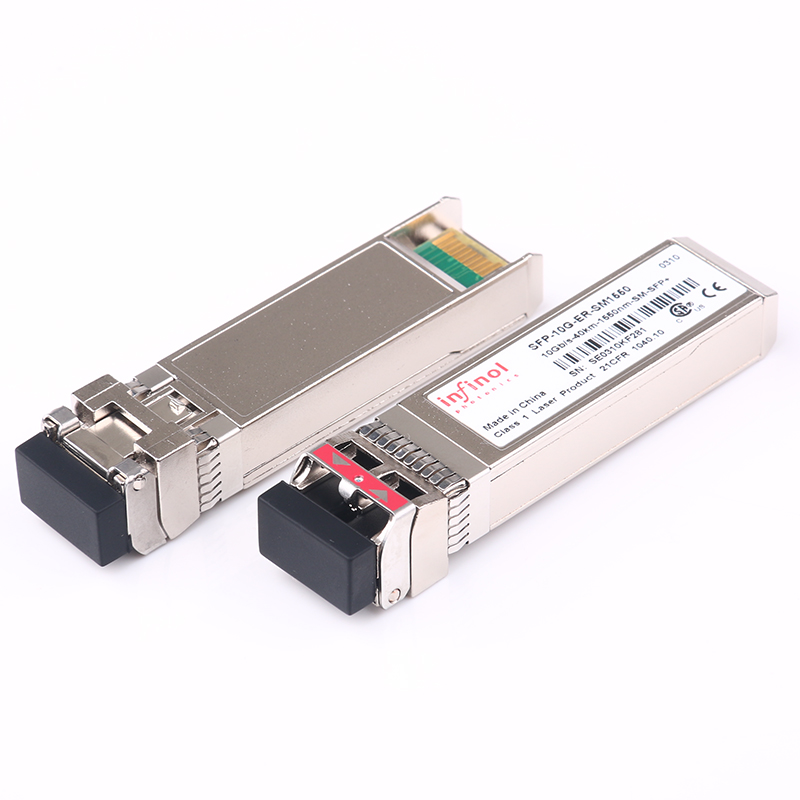

SFP+ 10G Transciver

10 Gb/s SFP+ series optical module products are small optical transceiver modules that support hot swap. The products include SFP dual fiber optical modules, SFP BiDi single fiber bidirectional optical modules, DWDM dense wavelength division color optical modules, and CWDM wave division. With color light module, the operating rate is 11.3 Gb/s; the product is fully compliant with Ethernet, Fibre Channel FC, SONET/SDH, and wireless CPRI standard protocols; the operating temperature range includes commercial temperature, wide temperature, industrial grade, and supports digital diagnostic functions. RoHS compliant.

Online consulting Back

Specifications
Features
Ordering Information
Use maintenance

Part Number	Package	Data Rate (bps/Hz)	Reach (km)	Tx	Rx	Connector	DDM
SFP-10G-SR-MM850	SFP+	10Gbps	300m	850nm VSCEL	PIN	LC	Y
SFP-10G-LRM-MM1310	SFP+	10Gbps	0.22km	1310nm FP	PIN	LC	Y
SFP-10G-LR-SM1310	SFP+	10Gbps	10km	1310nm DFB	PIN	LC	Y
SFP-10G-ER-SM1310	SFP+	10Gbps	40km	1310nm DFB	PIN	LC	Y
SFP-10G-ER-SM1550	SFP+	10Gbps	40km	1550nm EML	PIN	LC	Y
SFP-10G-ZR-SM1550	SFP+	10Gbps	80km	1550nm EML	APD	LC	Y

SFP+ 10G Transciver
